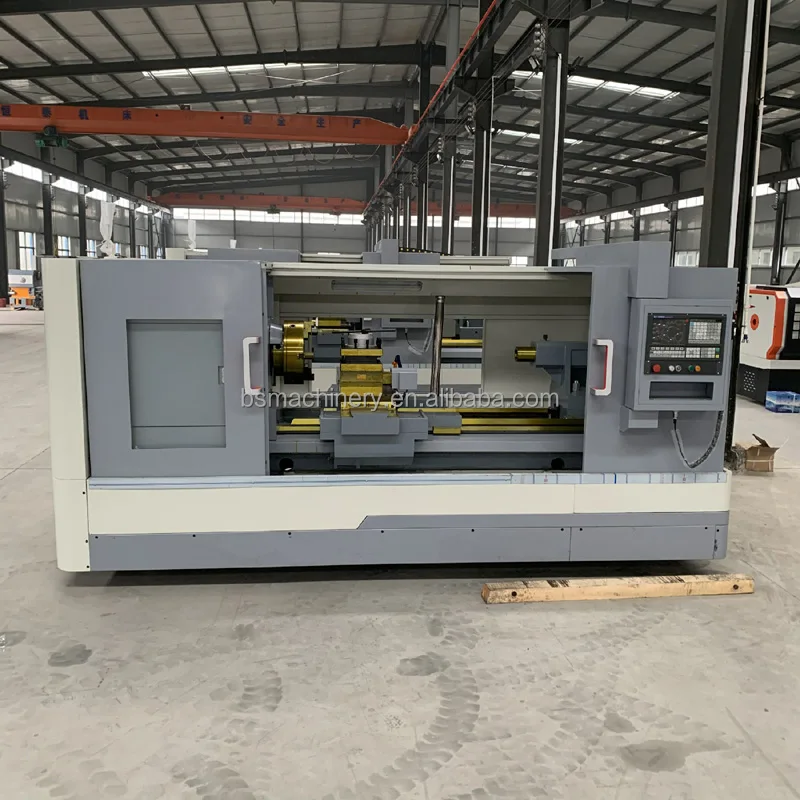

Metal Turning Lathe New CK6163 Horizontal Heavy Duty Flat Bed CNC Lathe Machine

Product Categories

Vertical Lathe Machine [381]
Horizontal Lathe Machine [212]
Lycra Rash Guard [1]
Face Lathe Machine [93]
Flat Bed CNC Lathe Machine [67]
CNC Horizontal Boring And Milling Machine [103]
Fake Flowers For Decoration [1]
Roll Turning Lathe Machine [70]
CNC Vertical Machining Center [49]
Gear Hobbing Machine [69]
Radial Drilling Machine [18]
Metal Shaping Machine [18]
Metal Slotting Machine [21]
Slant Bed CNC Lathe Machine [10]
Pipe Threading Lathe [61]
Other Machine [22]

Henan Baishun Machinery Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Metal Turning Lathe New CK6163 Horizontal Heavy Duty Flat Bed CNC Lathe Machine

Name: Metal Turning Lathe New CK6163 Horizontal Heavy Duty Flat Bed CNC Lathe Machine
Brand: BAISHUN
Price: 1 USD

Wholesale Metal Turning Lathe New CK6163 Horizontal Heavy Duty Flat Bed CNC Lathe Machine from china suppliers

Place of Origin : Henan, China

Brand Name : BAISHUN

Model Number : CK6161X1000mm

Packaging Details : Export standard wooden case package or Negotiation with customers

Supply Ability : 50 Set/Sets per Month

Price : Negotiation

Certification : ISO

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union

Delivery Time : 45 work days

Max. Length of Workpiece (mm) : 1000

Structure : Flat Bed Lathe

Max. Spindle Speed (r.p.m) : 1500 r.p.m

Machining Capacity : Light Duty

Spindle Bore(mm) : 100

Width of bed (mm) : 550 mm

Spindle Motor Power(kW) : 11

No. of Spindles : Single

Number of Axes : 2

Travel (X Axis)(mm) : 610 mm

Travel (Z Axis)(mm) : 750 mm

Positioning Accuracy (mm) : 0.03

Repeatability (X/Y/Z) (mm) : 0.012

Dimension(L*W*H) : 2550*1550*1900mm

Voltage : 380V/50Hz

CNC Control System : GSK

Tool Post Stations : 6, 4

Weight (KG) : 5000

Name : Metal Turning Lathe Chinese CNC Horizontal Mini Lathe Machine

Max. Swing over bed : 610mm

Tail stock center travel : 150mm

X/Z rapid traverse : 4/6m/min

Distance between centres : 3000mm

CNC or Not : CNC

Motor power : 7.5KW

Contact Now

Metal Turning Lathe New CK6163 Horizontal Heavy Duty Flat Bed CNC Lathe Machine

Product Description

Horizontal CNC lathe machine

Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing. Both the machine tool guide rail and the sliding saddle guide rail adopt hard guide rails of special materials, which are super hard and wear-resistant, durable, and have good machining accuracy retention after high-frequency quenching.

The numerical control system adopts GSK980TC3 and servo drive of Guangshu system, and adopts domestic famous and high-quality ball screw and high-precision screw bearing. The spindle adopts high-precision spindle bearing set and has been precisely assembled and dynamically balanced to ensure that the spindle has high precision, low noise and strong rigidity.

Features:
(1)The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency.
(2) Standard tool-post is 4-stations, also 6-stations tool-post can be optional selection Spindle speed changed by frequency.
(3)Induction harden bedway. Bed saddle with plastic sticker can improve the accuracy and service life of the machine.
(4)The spindle is supported by imported precision bearings.
(5)Normally machine is provided with 3jaw chuck. According to customer’s optional selection, hydraulic chuck or pneumatic chuck also can be supplied.

Metal Turning Lathe New CK6163 Horizontal Heavy Duty Flat Bed CNC Lathe Machine

Elenctric 4-position turret:

Metal Turning Lathe New CK6163 Horizontal Heavy Duty Flat Bed CNC Lathe Machine

With Tail stock:

Metal Turning Lathe New CK6163 Horizontal Heavy Duty Flat Bed CNC Lathe Machine

Machine parameter

Specifications	CK6140	CK6150	CK6161	CK6166	CK6180
Max. swing over bed	400mm	500mm	610mm	660mm	800mm
Max. workpiece length	750/1000/1500/2000/3000mm
Spindle taper	Mohs NO.6(MT6)[ Φ90 1:20(Type B)][ Φ113 1:20(Type C)]
Chuck size	C6[D8(Type B/C)]
Spindle bore dia.	Φ52mm/[Φ80mm(Type B)][Φ105mm(Type C)]
Range of spindle speeds 3 steps(Auto. Change gear)	Independent spindle:100~1600r/min 21-1500r/min(Ⅰ62-1500 Ⅱ66-500 Ⅲ21-150)
Tail stock center travel	150mm
Tail stock sleeve taper	MT5
Positioning accuracy	±0.015mm
Repositioning accuracy	±0.006mm
X/Z rapid traverse	4/6m/min
Spindle motor	7.5kw			11kw
Overall dimensions for750	255015501700		255015501900
Overall dimensions for1000	275015501700		275015501900
Overall dimensions for1500	325015501700		325015501900
Overall dimensions for2000	370015501700		370015501900
Overall dimensions for3000	471015501700		471015501900

Horizontal Flat Bed CNC Lathe Machine

Flat Bed CNC Lathe Machine

Metal Turning Lathe New CK6163 Horizontal Heavy Duty Flat Bed CNC Lathe Machine Images
